Towards a distributed solar energy future

Martin Scherfler, Reshma Suresh and Victor Catrib

In recent years decentralised solar energy systems have gained increasing attention as they have several benefits when compared to centralized  generation systems. They have a short gestation time and can contribute to meeting the growing electricity demand in India. Well planned siting of distributed solar energy generation can reap technical and commercial benefits. For example, locating it near the load centres reduces transmission and distribution losses (T&D) losses and also defers or avoids infrastructure upgrade costs while reducing cost of supply (CoS) at the same time.

Despite the benefits of distributed solar energy generation, achieving high solar penetrations presents the grid operators with challenges associated to the intermittent nature of solar energy. A recently published report by Auroville Consulting assesses the techno-commercial impact of high solar energy penetration on the distribution network. This was undertaken on 10 feeders of a selected substation in Erode district, Tamil Nadu. The approach taken maybe best described as considering the selected distribution network as an energy island – one that remains interconnected to the larger grid, draws services from it and in turn provides services to it. The objective was to explore what it takes to develop a net zero energy distribution network by introducing distributed solar energy, Time of Day  (ToD) tariffs and energy storage solutions, wherein 100% of annual electricity demand is met from local  solar energy generation.

The solar energy generators were interconnected at existing HT feeders in order to optimize  utilization of existing distribution infrastructure assets and to reduce T&D  losses.  This approach deviates from the current emphasis that solar energy generators require a dedicated feeder-  as it promoted for example under KUSUM-Scheme A by Ministry of New and Renewable Energy.  The technical part of the feasibility analysis includes determining the feeder’s solar hosting capacities, total distribution losses and feeder level voltage violations, while the economic feasibility analysis estimates potential financial savings for TANGEDCO on account of reduction of CoS.

Hosting Capacity

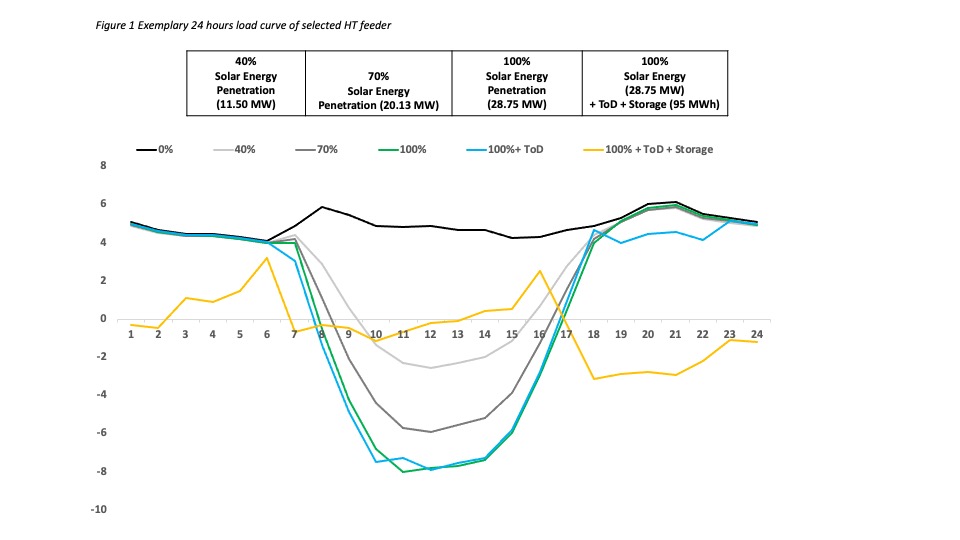

The results indicate that solar energy penetration levels of 40% can be accommodated by all 10 HT feeders without capacity violations.  5 feeders can accommodate a 70% solar energy penetration and 3 feeders can accommodate a 100% solar energy penetration. To achieve a 100% solar energy penetration level for all feeders the addition of energy storage is required. Introducing Time of Day tariffs facilitates a moderate reduction in peak load demand and will benefit grid operations.  Figure 1 below displays the load curves for the business as usual case and for the net load of increasing solar energy penetration levels with and without ToD tariffs and energy storage.

Voltage improvements and reduction in distribution losses

Distributed solar energy interconnected to existing HT feeders substantially improves voltage profiles and reduced distribution losses. Under the current scenario, without interventions (BAU case), one selected feeder exceeds the permissible voltage band for 87% of the annual operation hours.  After the introduction of distributed solar energy,  the instances of voltage violation are dramatically improved. Under the 100% solar energy, ToD tariffs and energy storage scenario voltage violations reduce from 80% to less than 1% of the annual operation hours (refer to Figure 2).

Solar energy penetration levels of 40% and 70% shows improvements in distribution losses over business as usual. While the distribution losses increase with 100% solar energy, as net energy flow increases,  the addition of ToD tariffs and energy storage is able to reduce distribution losses from a 18.44% to a 5.78% (refer to Figure 3).

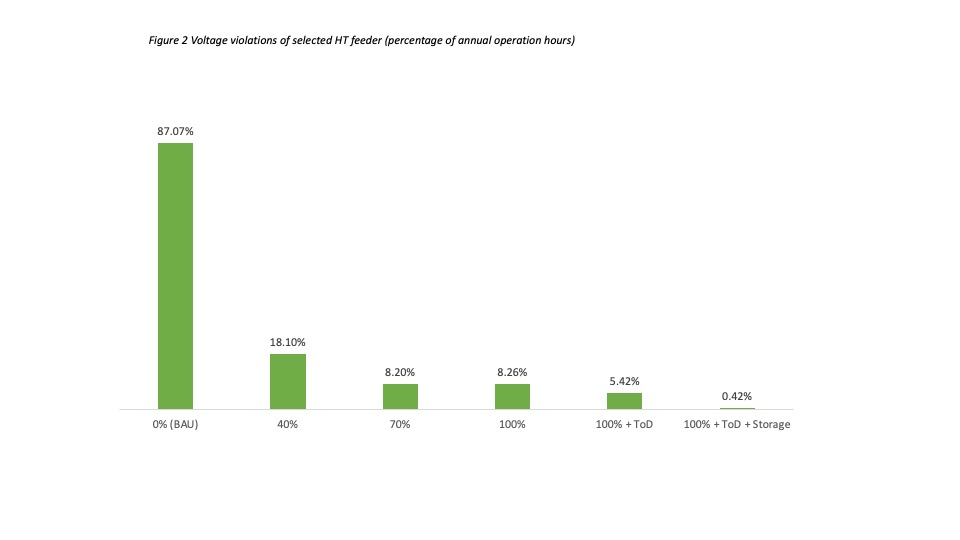

Figure 2 Voltage violations of selected HT feeder (percentage of annual operation hours)

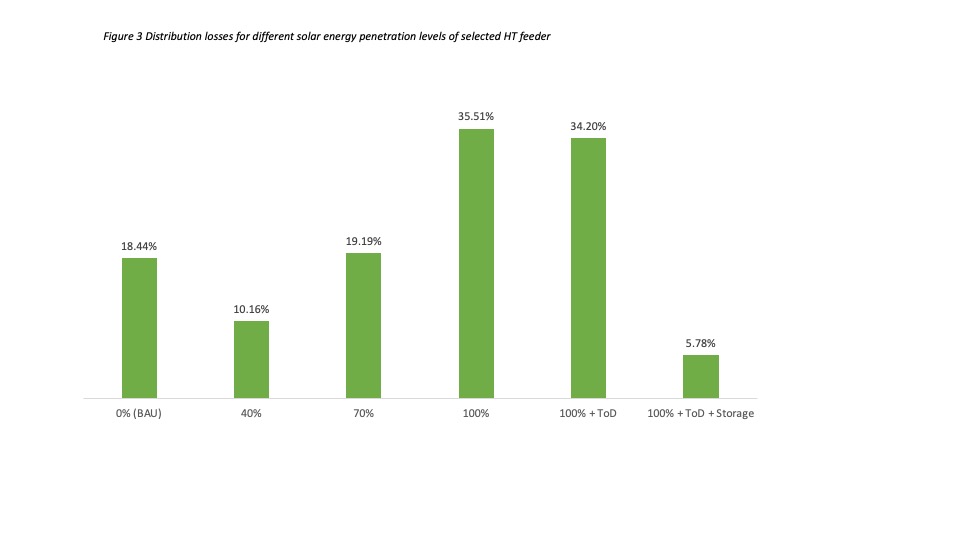

 Figure 3 Distribution losses for different solar energy penetration levels of selected HT feeder

Financial benefits

For the selected feeder the utility is current making an annual loss of INR 15.66 Crore on the supply of electricity to its consumers, as its cost of supply is higher than the revenue collected through electricity billing. The introduction of distributed solar energy, ToD tariffs and energy storage is able to reduce this revenue gap by INR  9.75 Crores from a 15.66 Crore in BAU to INR 5.91 Crore for 100% solar, ToD tariffs and energy storage (refer to Table 1). These financial benefits are expected to increase over time, as the levelized cost of solar and energy storage is assumed to be fixed over the contract period, whereas both cost of grid supply and consumer tariffs are expected to by at least the average inflation rate.

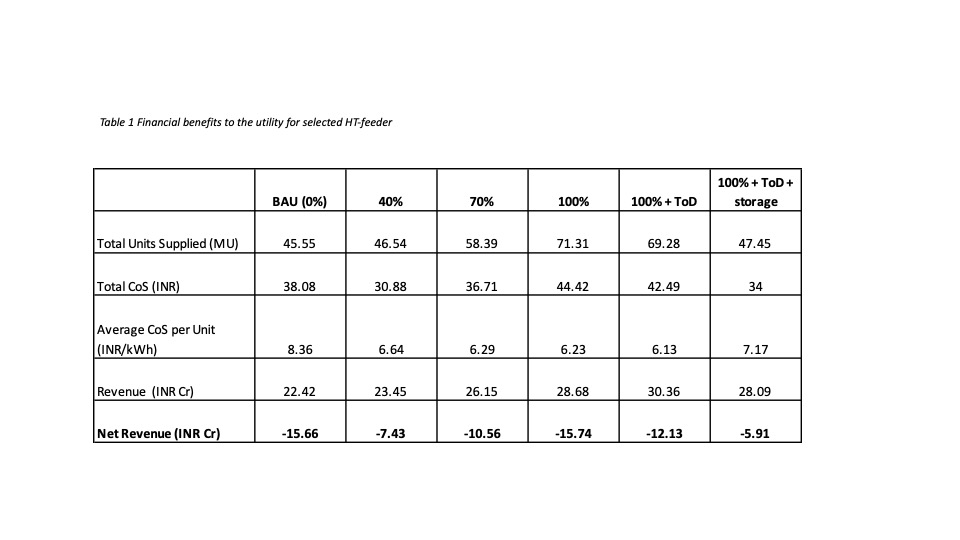

Table 1 Financial benefits to the utility for selected HT-feeder

Solar Energy, ToD tariffs and energy storage –  a winning proposition

In summary distributed solar energy generation in conjunction with well-designed ToD tariffs and energy storage promises to be a winning proposition for utilities. The expected high level technical and commercial benefits are:

  • Improved voltage profiles  and reduction in distribution and transmission losses.
  • Avoided investments in dedicated power evacuation infrastructure though interconnection at  existing distribution network nodes.
  • ToD tariffs facilitate higher local consumption of solar energy, reduce distribution losses and increase revenue.
  • Distributed solar energy with, or without, energy storage, reduces the total cost of supply to and therefore improves the financial performance of utilities.

How do we move forward?

In order to accelerate the deployment of distributed solar energy generation and energy storage, utilities need to endorse such an approach, which will require more evidences. Pilot projects by forward thinking developers or by the utilities will need to get off the ground. To start with, utilities can simply identify feeders with low average tail-end voltages and prioritize these feeders for solarization. Eventually utilities would be well advised to take a pro-active planning approach by identifying feeders that are expected to reap the highest benefits of adding distributed solar energy generation and energy storage. This requires feeder-wise hosting capacity studies and should result in maps that indicate available grid-interconnection points on existing feeders along with the solar energy and storage capacity required to achieve optimal technical and commercial results. These maps can be  then be made available to developers.

The results obtained clearly show the technical and commercial benefits of generating electricity close to the point of consumption. More importantly the results indicated that 100% solar energy penetration, in energy terms, is not only possible, but a winning proposition, especially so for the distribution companies.

This article was published in PV Magazine on 29th October 2020.https://www.pv-magazine-india.com/2020/10/29/towards-a-distributed-solar-energy-future/
